UV Design 能量計 150

#6種偵測波長,正確選擇所需波長範圍
   UV 150 ,type 1 350~460nm(Diazo)
   UV 150 ,type 2 315~400nm(UV-A)
   UV 150 ,type 3 250~410nm(Standard)
   UV 150 ,type 4 280~315nm(UV-B)
   UV 150 ,type 5 230~280nm(UV-C)
   UV 150 ,type 6 395~445nm(UV-V)

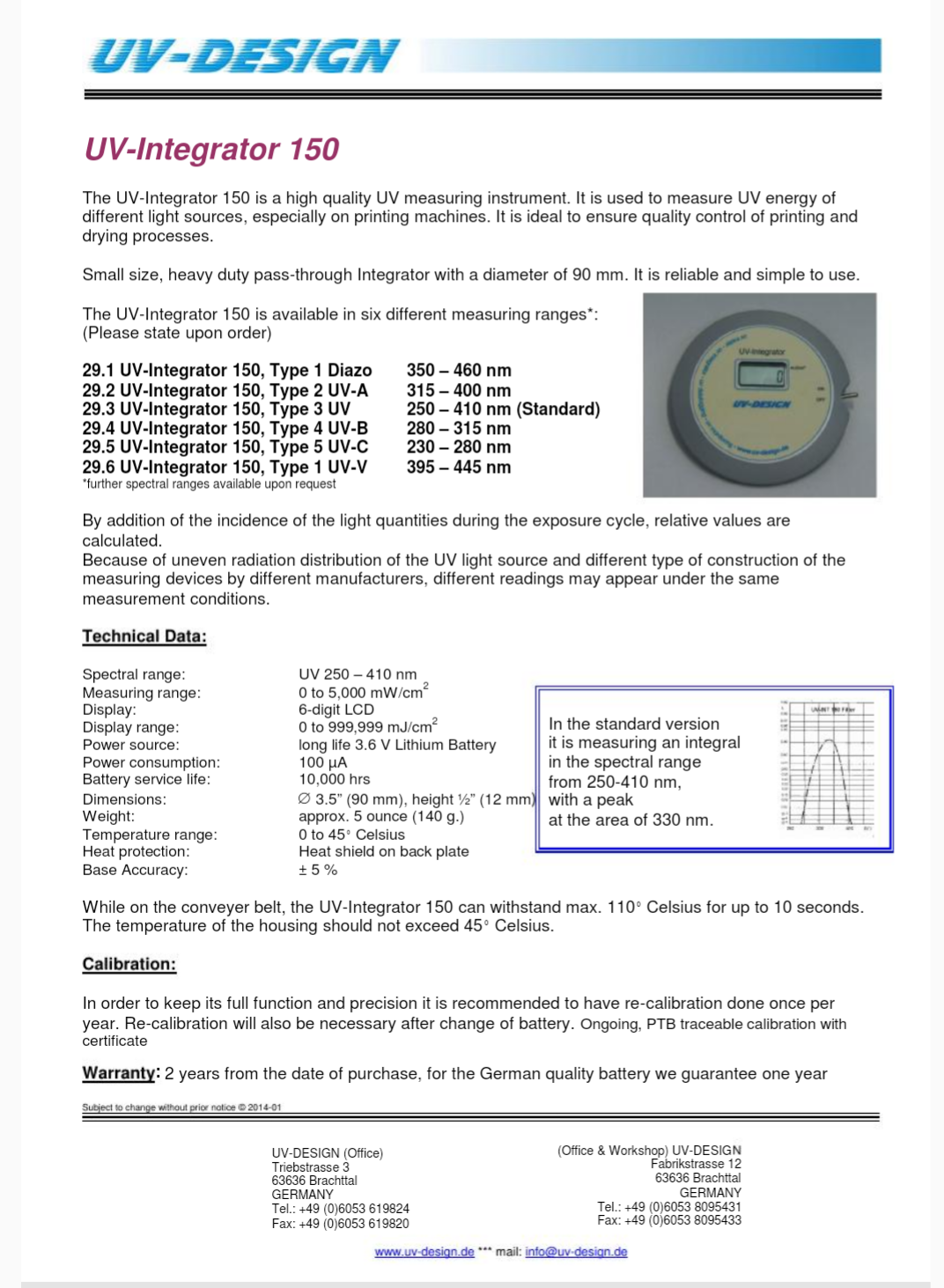

UV-Integrator 150

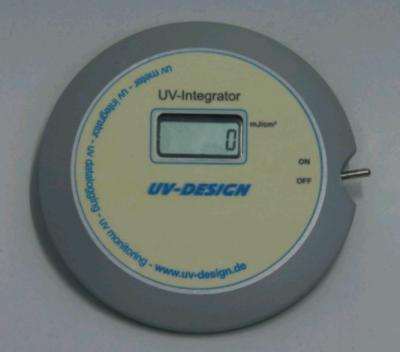

The UV-Integrator 150 is a high quality UV measuring instrument. It is used to measure UV energy of different light sources, especially on printing machines. It is ideal to ensure quality control of printing and drying processes.

Small size, heavy duty pass-through Integrator with a diameter of 90 mm. It is reliable and simple to use.

The UV-Integrator 150 is available in six different measuring ranges*: (Please state upon order)

29.1 UV-Integrator 150, Type 1 Diazo         350 – 460 nm

29.2 UV-Integrator 150, Type 2 UV-A         315 – 400 nm

29.3 UV-Integrator 150, Type 3 UV             250 – 410 nm (Standard)

29.4 UV-Integrator 150, Type 4 UV-B         280 – 315 nm

29.5 UV-Integrator 150, Type 5 UV-C         230 – 280 nm

29.6 UV-Integrator 150, Type 1 UV-V         395 – 445 nm

*further spectral ranges available upon request

By addition of the incidence of the light quantities during the exposure cycle, relative values are

calculated.

Because of uneven radiation distribution of the UV light source and different type of construction of the measuring devices by different manufacturers, different readings may appear under the same measurement conditions.

Technical Data:

Spectral range:UV 250-410 nm

Measuring range:0 to 5000mW/CM2

Display:6-digit LCD

Display range:0 to 999,999 mJ/cm2

Power source:long life 3.6 V Lithium Battery

Power consumption: 100 µA 10,000 hrs

Battery service life: Dimensions:∅3.5” (90 mm), height ½” (12 mm)

Weight:approx. 5 ounce (140 g.)

Temperature range/Heat protection:0 to 45° Celsius

Base Accuracy:Heat shield on back plate ± 5 %

          In the standard version it is measuring an integral

          in the spectral range from 250-410 nm, with a peak

          at the area of 330 nm.

While on the conveyer belt, the UV-Integrator 150 can withstand max. 110° Celsius for up to 10 seconds. The temperature of the housing should not exceed 45° Celsius.

Calibration:

In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after change of battery. Ongoing, PTB traceable calibration with certificate

Warranty: 2 years from the date of purchase, for the German quality battery we guarantee one year
