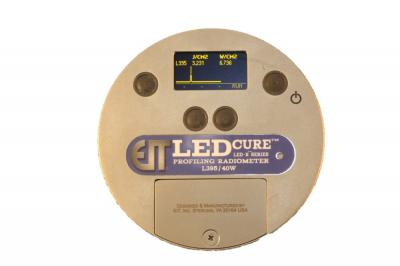

EIT LEDCURE

EIT LEDCURE 照度計,UV LED量測專用

EIT LEDCure L-R SERIES,是設計用來專門量測UV LED 的UV量測儀器
以配合LED特性,以較窄的量測區間,配合365.375.385.395等特定波長
達到更高的量測精準度


L365 Spectral Response

340-392  nm (FWHM, 50 nm; Tolerance ± 2 nm); Out of Band, 4 OD Blocking

L385 Spectral Response

360-412  nm (FWHM, 50 nm; Tolerance ± 2 nm); Out of Band, 4 OD Blocking

L395 Spectral Response

370-422 nm (FWHM, 50 nm; Tolerance ± 2 nm); Out of Band, 4 OD Blocking

L405 Spectral Response

380-432 nm (FWHM, 50 nm; Tolerance ± 2 nm); Out of Band, 4 OD Blocking

Dynamic Range

40 W/cm2

Operating Range

400 mW/cm2 to 40 W/cm2     Note: Operating Range provides best performance.

Unit will “turn on” and display data at much lower irradiance values

Spatial Response

Approximately cosine

Accuracy

±10% of reading plus ±0.2% of full scale Typical ±5% or better

Repeatability

± 1-3% typical; dependent on source and equipment (conveyor) stability, unit alone better than 1%

Smooth Modes

Smooth ON: Effective Sample rate of 25 samples/second

Smooth OFF: Effective Sample rate of 2048 samples/second

Smooth PROFILER: Effective Sample rate of 128 samples/second

Sample Rate for Profiling

The LEDCure Profiler uses a fixed sample rate of 128 samples/second for profiling. For best match- ing between instrument display and PowerView Software® III values, use Smooth PROFILER mode

Memory Capacity For Profiling

The memory capacity of the LEDCure  in Profiler Mode is sufficient to collect data for >100 minutes

PowerView

Software® III

National Instruments LabVIEW based programming designed for Windows 7-10. Collected data stored in LabVIEW based *.tdms files

Display

Easy to Read, Yellow Text on Black Background, Display Brightness User Adjustable

Operating

Temperature

0-75°C Internal temperature; withstands high external temperatures for short periods (audible alarm indicates when temperature has exceeded upper limit )

Time-Out Period

2 minutes DISPLAY mode (no key activity)

Battery/Battery Life

2  user-replaceable AAA Alkaline Cells, Approximately 20 hours with display on

Instrument Dimensions and Materials

4.60 x 0.50 inches; 117 mm x 12.7 mm (D x H), Aluminum & Stainless Steel

Instrument Weight

10.1 ounces (289 grams)

Carrying Case

Supplied with carrying case, cut polyurethane foam interior, scuff resistant nylon exterior cover, Size: 10.75 x 3.5 x 7.75 inches; 274 x 89 x 197 mm (W x H x D), Weight: 9 ounces (260 grams)



1137369
附加檔案:
EIT_LEDCURE.pdf
