UV Design 能量计 151
#原厂代理商,100%德国进口
#7种侦测波长,正确选择所需波长范围
UV 151 ,type 1 350~460nm(Diazo)
UV 151 ,type 2 315~400nm(UV-A)
UV 151 ,type 21 380~420nm(UV LED)
UV 151 ,type 3 250~410nm(Standard)
UV 151 ,type 4 280~315nm(UV-B)
UV 151 ,type 5 230~280nm(UV-C)
UV 151 ,type 6 395~445nm(UV-V)

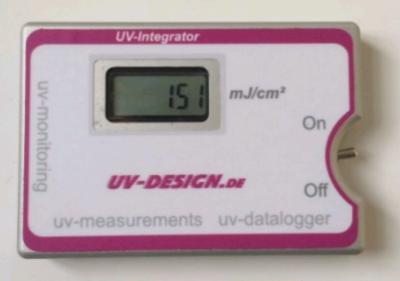

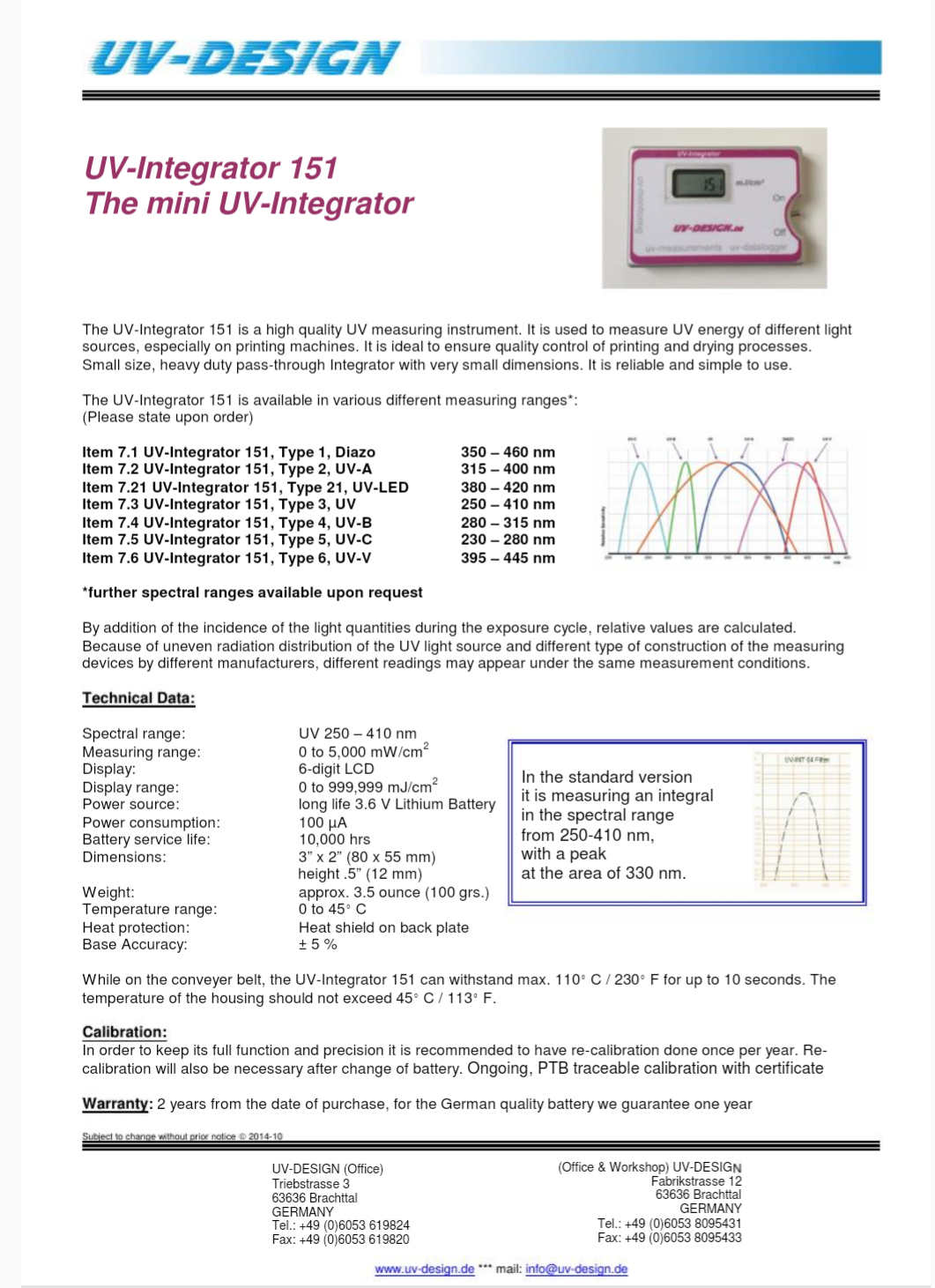

UV-Integrator 151
The mini UV-Integrator
The UV-Integrator 151 is a high quality UV measuring instrument. It is used to measure UV energy of different light sources, especially on printing machines. It is ideal to ensure quality control of printing and drying processes.
Small size, heavy duty pass-through Integrator with very small dimensions. It is reliable and simple to use.
The UV-Integrator 151 is available in various different measuring ranges*: (Please state upon order)
Item 7.1 UV-Integrator 151, Type 1, Diazo 350 – 460 nm
Item 7.2 UV-Integrator 151, Type 2, UV-A 315 – 400 nm
Item 7.21 UV-Integrator 151, Type 21, UV-LED 380 – 420 nm
Item 7.3 UV-Integrator 151, Type 3, UV 250 – 410 nm
Item 7.4 UV-Integrator 151, Type 4, UV-B 280 – 315 nm
Item 7.5 UV-Integrator 151, Type 5, UV-C 230 – 280 nm
Item 7.6 UV-Integrator 151, Type 6, UV-V 395 – 445 nm
*further spectral ranges available upon request
By addition of the incidence of the light quantities during the exposure cycle, relative values are calculated. Because of uneven radiation distribution of the UV light source and different type of construction of the measuring devices by different manufacturers, different readings may appear under the same measurement conditions.
Technical Data:
Spectral range:UV 250-410 nm
Measuring range:0 to 5000mW/CM2
Display:6-digit LCD
Display range:0 to 999,999 mJ/cm2
Power source:long life 3.6 V Lithium Battery
Power consumption: 100 µA 10,000 hrs
Battery service life: Dimensions:3” x 2” (80 x 55 mm)height .5” (12 mm)
Weight:approx. 3.5 ounce (100 g.)
Temperature range/Heat protection:0 to 45° Celsius
Base Accuracy:Heat shield on back plate ± 5 %
In the standard version it is measuring an integral
in the spectral rangefrom 250-410 nm, with a peak
at the area of 330 nm.
While on the conveyer belt, the UV-Integrator 151 can withstand max. 110° C / 230° F for up to 10 seconds. The temperature of the housing should not exceed 45° C / 113° F.
Calibration:
In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re- calibration will also be necessary after change of battery. Ongoing, PTB traceable calibration with certificate
Warranty: 2 years from the date of purchase, for the German quality battery we guarantee one year
